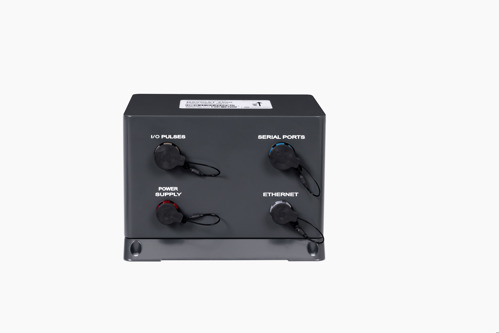

SperryMarine NAVIGAT 2500 Fiber Optic Gyro Compass Solution
Navigate with Precision: NAVIGAT 2500 Fiber Optic Gyro Compass
Long term reliable operation for lower cost: Our unique low drift, fast settling networked fiber optic gyro compass provide operators with a highly reliable heading sensor in a highly competitive priced compass system package. Maintenance free strap-down FOG technology forgoes the need for moving parts or expensive configuration. Delivering our longest running system endurance to date at a MTBF of 150,000 hrs, wherever you are heading, you can be confident Sperry Marine will get you there safely, reliably and cost effectively.
- Maila oss, vi svarar snabbt!
Beskrivning
The NAVIGAT 2500 fiber optic gyro compass system is maintenance free (MF) meaning regular maintenance or calibration is not required. The fiber optic gyro compass has no moving parts and does not rely on inertial resistance to any movement. NAVIGAT 2500 is based on long proven technology applied to harsh environments and hence, the most reliable and affordable alternative to the mechanical gyro compass. In addition, the NAVIGAT 2500 does not fall under any export restriction and is available for immediate delivery and installation. It is the perfect fit for all vessels operating on tight schedules requiring high reliable heading sensors with minimal service effort at a highly competitive price point.
NAVIGAT 2500 CompassNet features include the provision of heading, rate of turn and roll and pitch data, with an initial settling time of 5 minutes and fine settling within a maximum of additional 25 minutes. The FOG sensor’s solid state nature is unaffected to speed / latitude error and integrated with CompassNet provides 12 serial interfaces for heading repeaters plus 6 serial interfaces for heading receivers and analogue outputs.
The NAVIGAT 2500 is fully integrated with Sperry Marine’s redundant CompassNet Heading Management System. The open platform approach, that allows integration of up to four heading sensors, provides the option to integrate legacy products like NAVIGAT 2200, NAVIGAT 3000 or NAVIGAT X MK1 in combination with NAVIGAT 2500. In addition, it is possible to integrate third party heading sensors with standard serial NMEA-0183 interface.
• Strap-down technology with no moving parts for maintenance-free, continuous operation
• Fully integrated into CompassNet for redundancy and maximum uptime
• Proven technology with the longest system life
• Type approved to applicable MED, IMO and IEC standards
• RMRS/RRR and CCS type approval also available
• Most affordable commercial FOG system with fast ROI
• No maintenance fees
• Fixed-price option for system and installation by certified
Sperry Marine Engineers
• Faster, easier installation with up to 80% less cabling than
comparable systems
• Heading sensors for Differential Positioning can also be used for
navigation purposes
• 5-year warranty
Filer och media
 | Datablad |
| Gyrocompass accessories |
