NAVIGATIONSPERRY MARINESperryMarine Gyro Compass System NAVIGAT 200 CompassNet

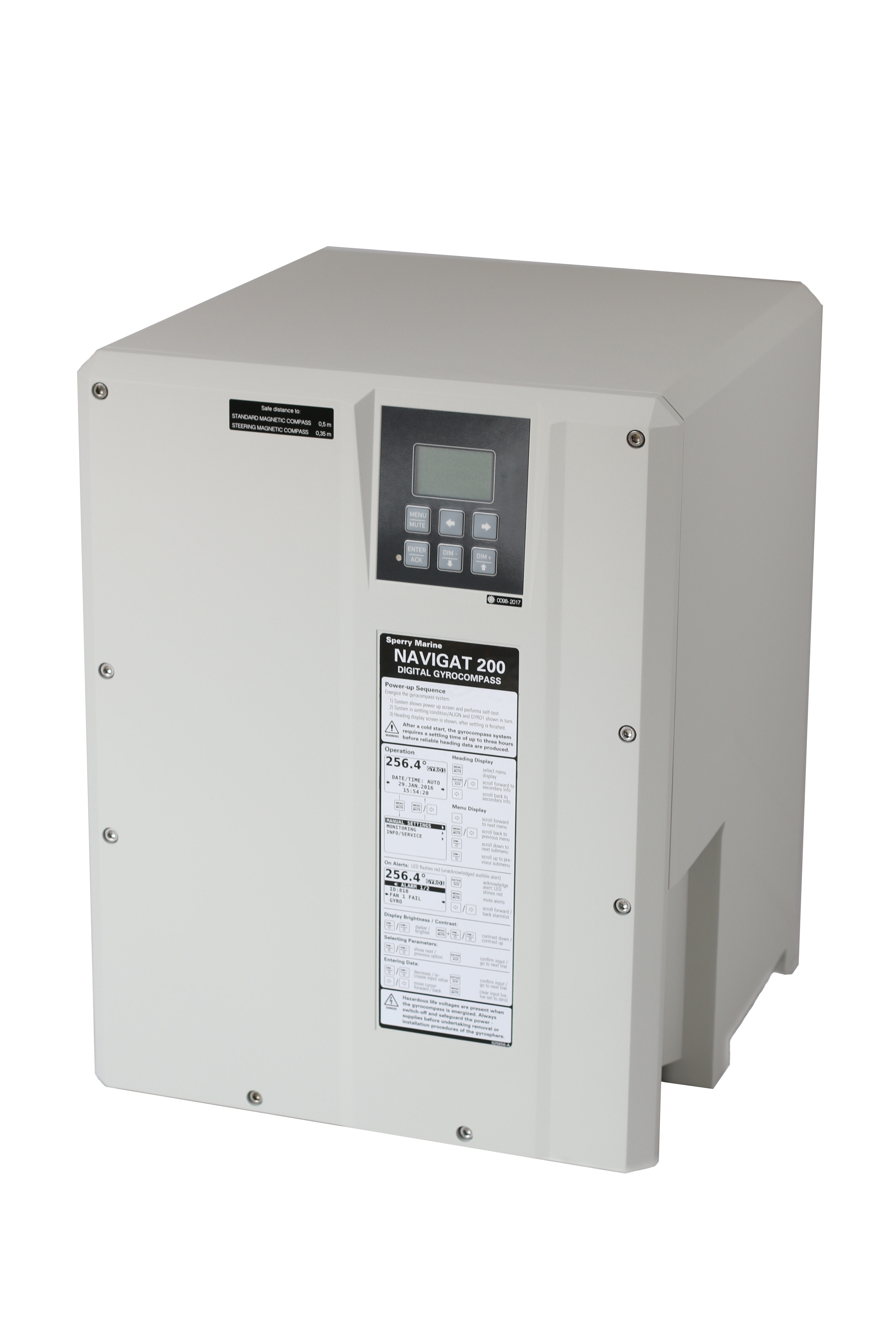

SperryMarine Gyro Compass System NAVIGAT 200 CompassNet
SperryMarine Gyro Compass System NAVIGAT 200 CompassNet
SperryMarine Gyro Compass System NAVIGAT 200 CompassNet - 2
SperryMarine Gyro Compass System NAVIGAT 200 CompassNet - 3

SperryMarine Gyro Compass System NAVIGAT 200 CompassNet

Networked Spinning Mass Gyro Compass The most accurate and reliable networked spinning mass gyro compass. Our unique networked spinning mass compass NAVIGAT 200 is your solution for cost-efficient resilience. It’s easy to install, either in a single or multi-system configuration of up to four gyros for full redundancy. With the longest system life for a spinning mass gyro and minimal service support required, you can be confident Sperry Marine will get you to your destination safely, reliably and cost effectively.
Read more...
  • E-mail us, we reply swiftly!

Description

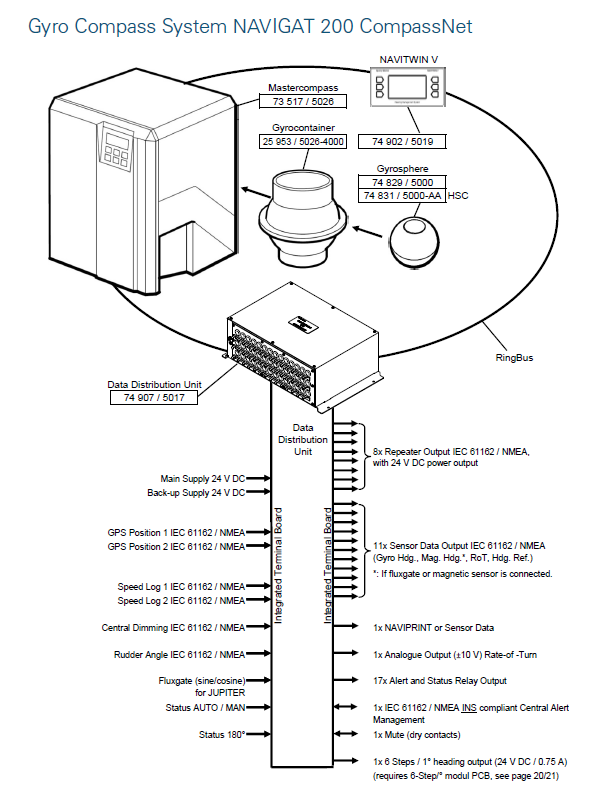

NAVIGAT 200 is embedded into our Heading Management System CompassNet which provides an open platform for integration of up to four compasses and one additional magnetic compass. With this approach, the system can be flexibly updated to your needs: integration of existing functional compasses and a flexible upgrade path to add sensors for improved resilience. This is combined with a wide variety of inputs and outputs that cover all interface requirements on the Navigation Bridge and additionally provides the option for integration with legacy equipment in retrofit configurations. Our NAVIGAT 200 is a networked spinning mass gyro that delivers the industry’s highest levels of accuracy and reliability. It is quick to install and retrofit, for easy integration with third-party distribution systems, while additionally offering an upgrade path as requirements evolve. With the NAVIGAT 200 you will have a single access point for configuration and operation through NAVITWIN V Control and Display Unit (CDU), and up to 8 CDUs with CompassNet. It has the same compact size and installation footprint as legacy compasses which makes it easy and fast to install. It also has the lowest gyrosphere maintenance intervals on the market. The NAVIGAT 200 supports SRTP configurations and is type approved to all applicable MED, IMO and IEC standards. The NAVIGAT 200 is particularly suited to all vessels that need: * Safe, cost-efficient and resilient operation * Single, dual, triple-gyro compliance * Upgrade path to retrofit existing compass installations
