SKIPPER ESN200 Dual Channel Echo Sounder Display IMO Wheelmarked

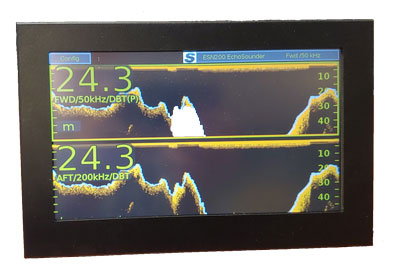

The SKIPPER ESN200 is a navigation Echo Sounder with a black box and a 9" touch display. The Echo Sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic. The ESN200 is a dual frequency Echo Sounder.
- E-mail us, we reply swiftly!
- ManufacturerSKIPPER
- Manufacturer Part numberESN200-SB
Description
Article no.: ESN200-SB
The ESN200 is a navigational echo sounder system that is made to fulfil the needs of a modern SOLAS vessel. Its aim is to be automated, so that the user does not need to adjust settings. But it also allows the user to adjust if they feel the need. The ESN is part of the SKIPPER Multi family, allowing the use of LAN to interconnect systems and use multiple screens.
Features include:
• Easy and logical operation via a touch display, with fully automatic settings
• Possibility of multiple control units
• Fully integrable and frequently updated with the latest integration standards
• Remotely accessible
• Internal diagnostics and Built in test
• 2 simultaneous channels, each of which is frequency controllable
• 7 available frequencies. 24, 30, 33, 38, 50, 100, 200kHz
• 3 IMO approved frequencies. 38, 50, 200kHz
• Other available transducers from SKIPPER: ETN024 24kHz
Files and media
 | Datasheet |

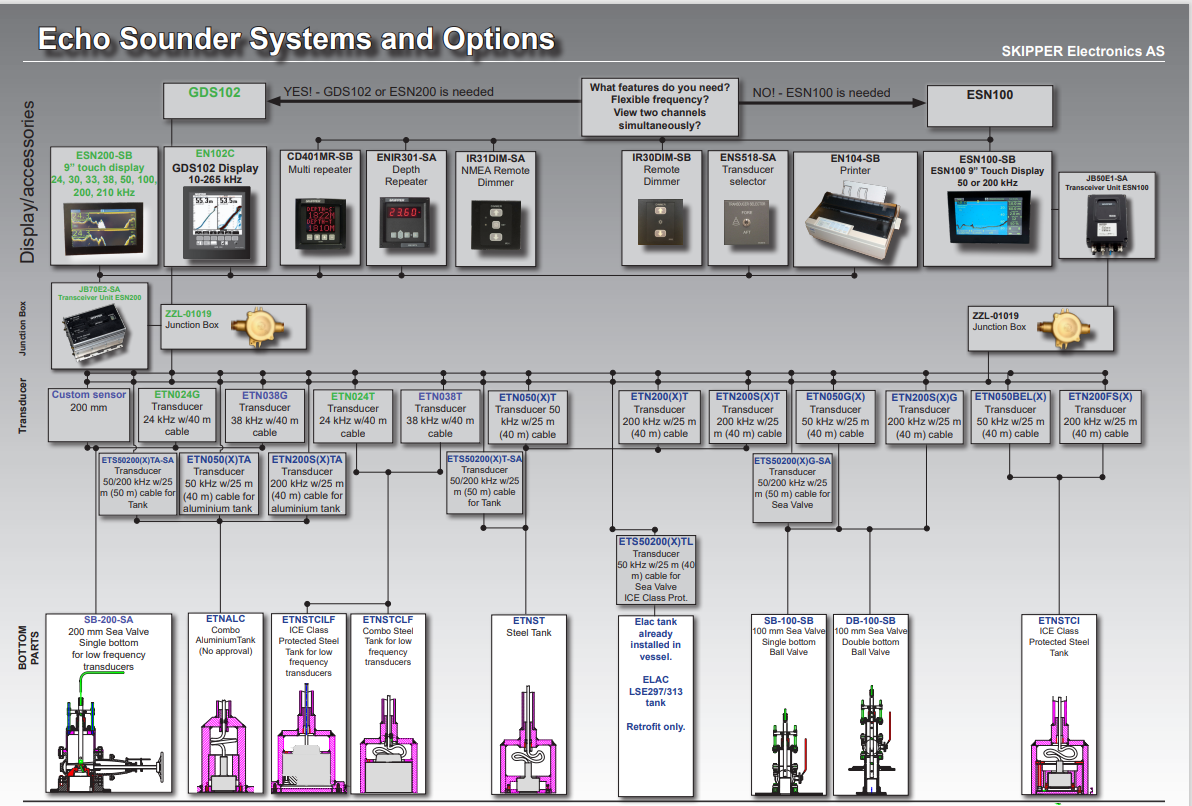

| Echo Sounders setup and option |
