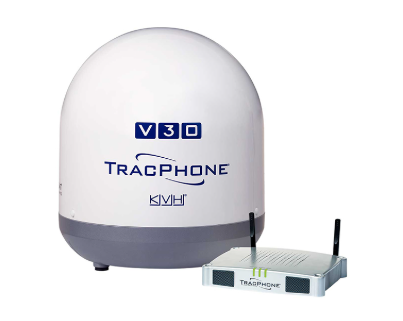

KVH TracPhone V30
Ultra-compact, fast, and affordable VSAT worldwide for ships, yachts, and special ops
KVH’s award-winning TracPhone® V30 keeps you connected when you want to be with global satellite communications. This 37 cm digital system makes VSAT accessible and affordable, delivering the highest speeds, fast and easy installation, next-generation technology, and flexible airtime plans.
- E-mail us, we reply swiftly!
- ManufacturerKVH
- Manufacturer Part number01-0432-01
- Our Part number2296081
Description
Article no.: 01-0432-01
* Rugged digital satcom system with improved signal efficiency
* Data speeds as fast as 6 Mbps/2 Mbps (down/up)
* Choice of metered and unlimited use global airtime plans with no overages
Highlights
- The smallest, lightest, lowest powered maritime VSAT system, ideal for sailboats, powerboats, and as a backup for superyacht communications
- Simple installation using a single new or existing coax cable, rotary joint for unlimited rotation, DC power (optional AC-to-DC power converter available), and compact VSAT-Hub belowdecks unit
- Global connectivity and crystal-clear voice calls via KVH’s mini-VSAT Broadband HTS network
- Powerful network management tools providing valuable insight and control over data usage via KVH Manager
- Optimized system performance thanks to KVH’s integrated IoT Proactive Monitoring

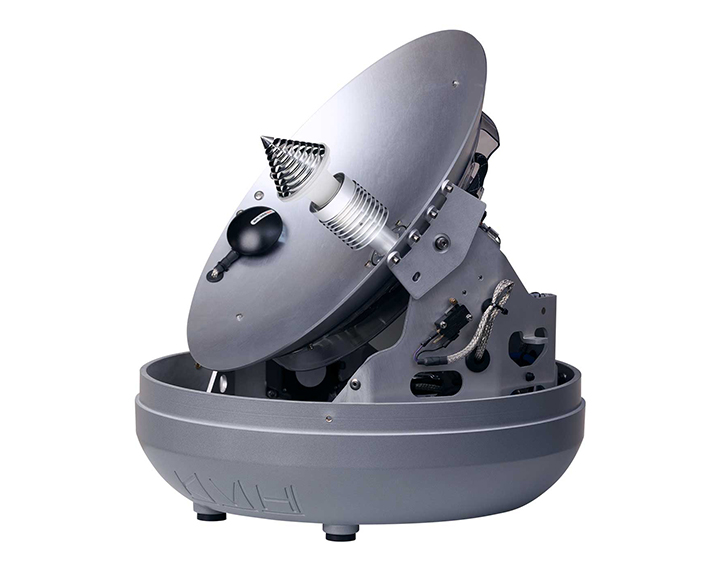

The Lightest, Ultra-fast, High Efficiency Antenna
The 37 cm commercial-grade TracPhone V30 is an ultra-compact DC-powered1 digital antenna that offers easy single-cable installation and a commercial-grade rotary joint for uninterrupted rotation and tracking. It provides high-performance tracking in all sea states with 2-axis pedestal design, stabilized skew, dual digital IMUs, and advanced motor controllers. TracPhone V30’s innovative RingFire™ design and dielectric rod feed make this a high efficiency antenna that ensures excellent Ku-band reception even in bad weather.
Global Connections, Unmatched Speed

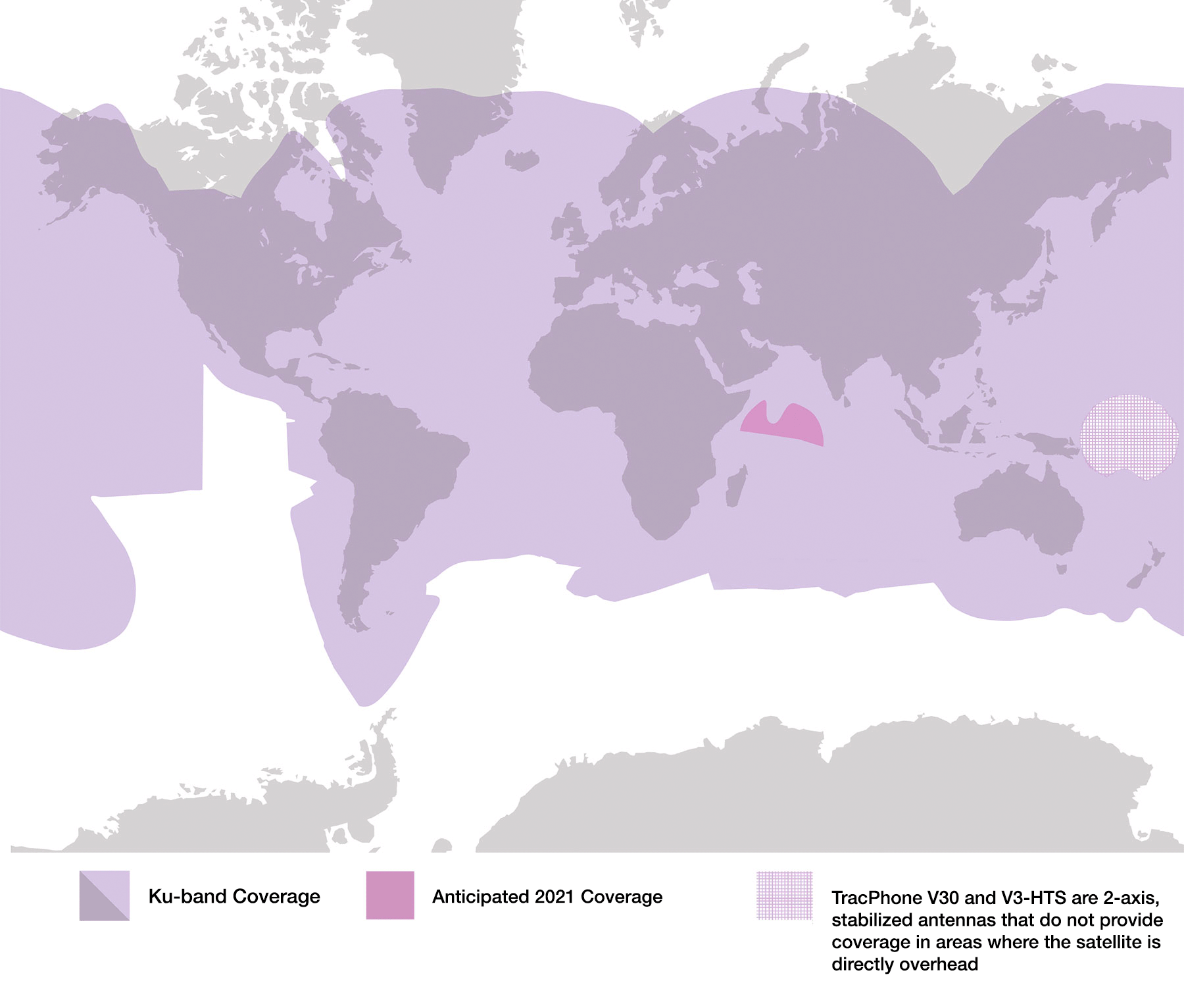

The mini-VSAT Broadband HTS network offers 276 million square km (106+ million square miles) of Ku-band coverage. Enjoy global connections and unmatched speed as fast as 6 Mpbs/2 Mbps (down/up)2 using advanced next-generation high-throughput satellites (HTS) from Intelsat and SKY Perfect JSAT. Plus, you get greater resilience to weather and rain fade than with Ka-band services.

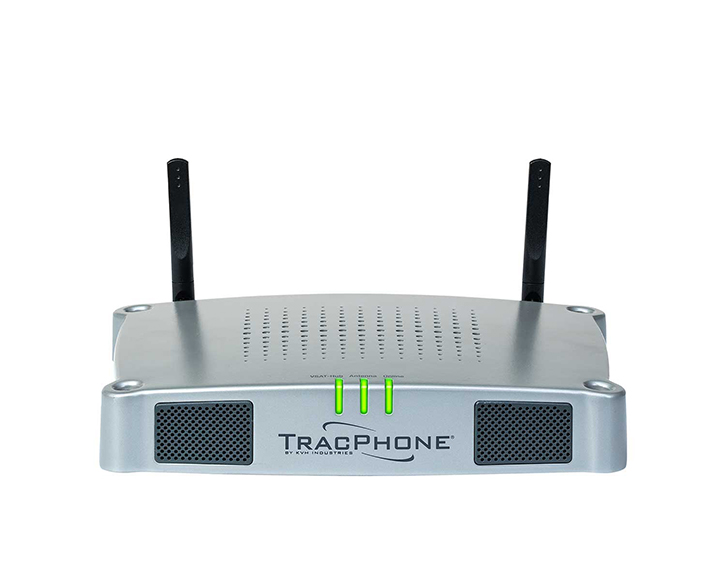

VSAT-Hub – Small, Fast, and Smart in Every
The VSAT-Hub is the streamlined all-in-one belowdecks unit that powers the TracPhone V30. This IP-enabled antenna control unit includes versatile network management software, data routing, and firewall security, plus a Voice over IP (VoIP) adapter, built-in Wi-Fi, and Ethernet switch. Almost 90% smaller by volume than 2U rack-mounted belowdecks units, it’s easier to install and ideal for vessels with limited space.
Exclusive Multi-level Cybersecurity Program
The TracPhone V30 features advanced network-level firewall, automated threat management
Precision Management of Your Data
The KVH Manager suite of tools delivers valuable insight and control over data usage to manage operational and personal use.
