LT-4200 Satellite Communications System - Basic

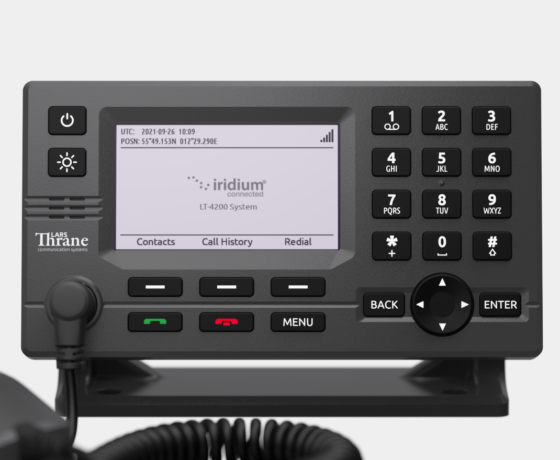

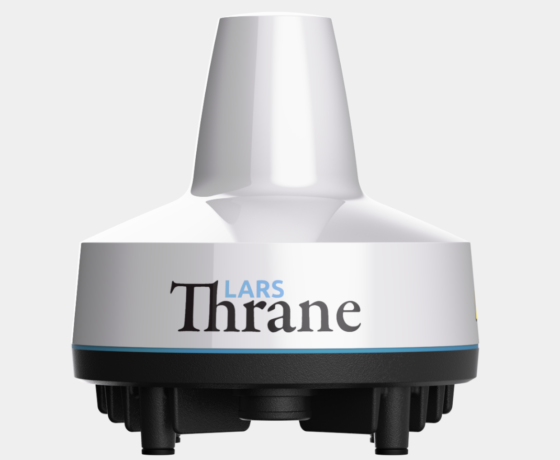

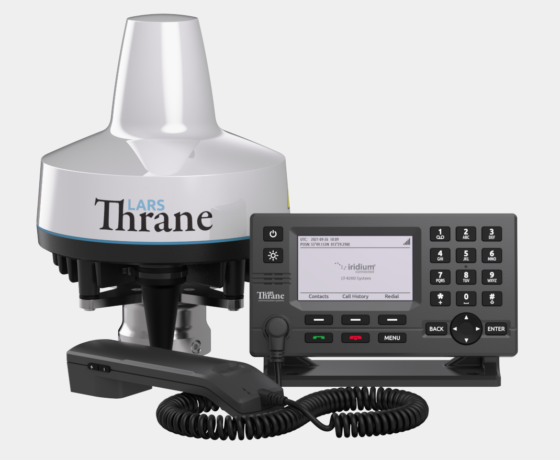

The LT-4200 system has voice and data capabilities with 100% global coverage provided by the Iridium® Certus network. The LT-4200 system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites. The LT-4200 system can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity (ship to ship / ship to shore). The LT-4200 system offers three high quality voice channels, and IP-data up to 176 kbps (up) / 176 kbps (down), making it the perfect satellite communication product on board any vessel. The LT-4200 system is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F). * 3 x high quality voice channels * Background IP: up to 176 kbps (up/down) * Single antenna cable solution (up to 150 m) * Support for external SIP PABX and SIP handsets (up to 8) * POTS through Analogue Telephone Adaptors (ATA) * High-performance GNSS/GPS receiver * Ethernet LAN interface on control unit * Large 4.3” TFT display supporting day and night modes * Firewall and user authentication for high level of security * Configuration of firewall, port forwarding, and remote access * PPPoE/JSON protocol for external IP-data management * Web server for configuration and maintenance In The Box: - LT-4210 Control Unit - LT-3120 Handset - LT-3121 Cradle -LT-4230/-L Antenna Unit - Bracket Mount, Control Unit - Power Cable, 3m - Stainless steel A4 screws for mounting - User & Installation Manual - Unit Test Sheets
