Pepwave MAX HD2 Mini LTEA (Americas and EMEA)

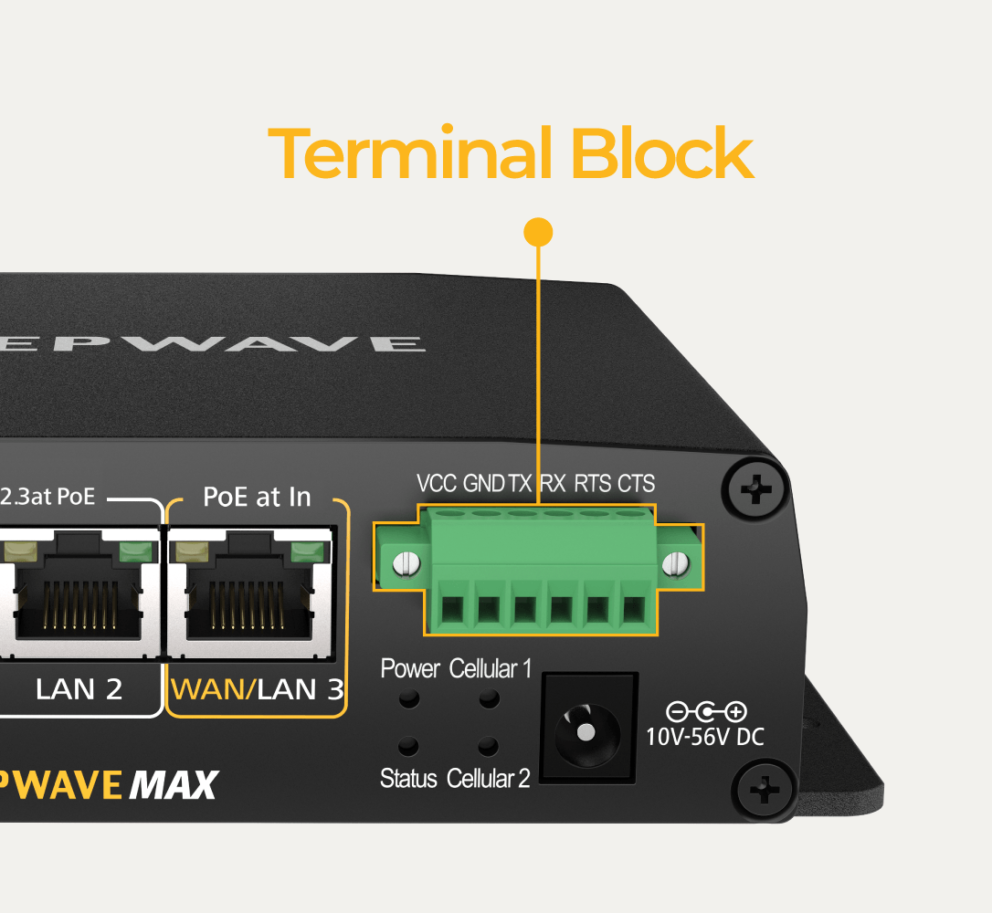

Features • Dual Cellular and Redundant SIM Slots • Fleet Tracking and Management • Meet Strict Security Compliance • SpeedFusion Bandwidth Bonding and Seamless Failover • Customize Captive Portal • Certified Toughness Specifications • WAN Interface: 1x USB Interface 1x GE 2x Embedded LTE Modems with Redundant SIM Slots • LAN Interface: 2x GE • Router Throughput 300Mbps • Recommended Users 150 • LTE Modem Downlink/Uplink Datarate: 100Mbps/50Mbps • LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps • Cellular and GPS Antenna Connector: 4x SMA Antenna Connectors 1x SMA GPS Antenna Connector • Power Input: DC Jack/Terminal Block: 12V – 48V 2A • Power Output: Up To Three 802.3af/24V Pepwave Passive PoE Outputs • Power Consumption 15W (max.) • Dimensions 1.6 x 5.8 x 5 inches 40 x 147 x 128 mm • Weight: 0.96 pounds 0.5 kg • Operating Temperature: -40° – 149°F -40° – 65°C • Humidity 15% – 95% (non-condensing) • Certifications: FCC, CE, RoHS, E-Mark RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV) EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance: EN 50155: Railway Applications EN 61000: Electromagnetic Compatibility • Warranty: 1-Year Limited Warranty 4G Bands/Frequencies (MHz) • B2/1900, B4/AWS , B5/850, B13/700, B17/700, B25/1900 3G Bands/Frequencies (MHz) • WCDMA/HSPA+/DC-HSPA+: B1/2100, B2/1900, B4/AWS, B5/850, B8/900 EV-DO Rev.A: BC0/800, BC1/1900, BC10/800 Product Includes (1) MAX-HD2-MINI-LTEA-W-T Router (1) User Manual
